Product variety: Corrugated base paper, T-paper, test liner board paper

Quantitative range: 90~280g/m2

Annual production: customized

Width: 1092-5600mm

Working speed: 200-1500m/min

Balance level: drying cylinder G2.5 roller G1.6

Transmission method: AC motor, variable frequency control, and segmented transmission

Layout method: single or double layer, left/right machine layout (customized)

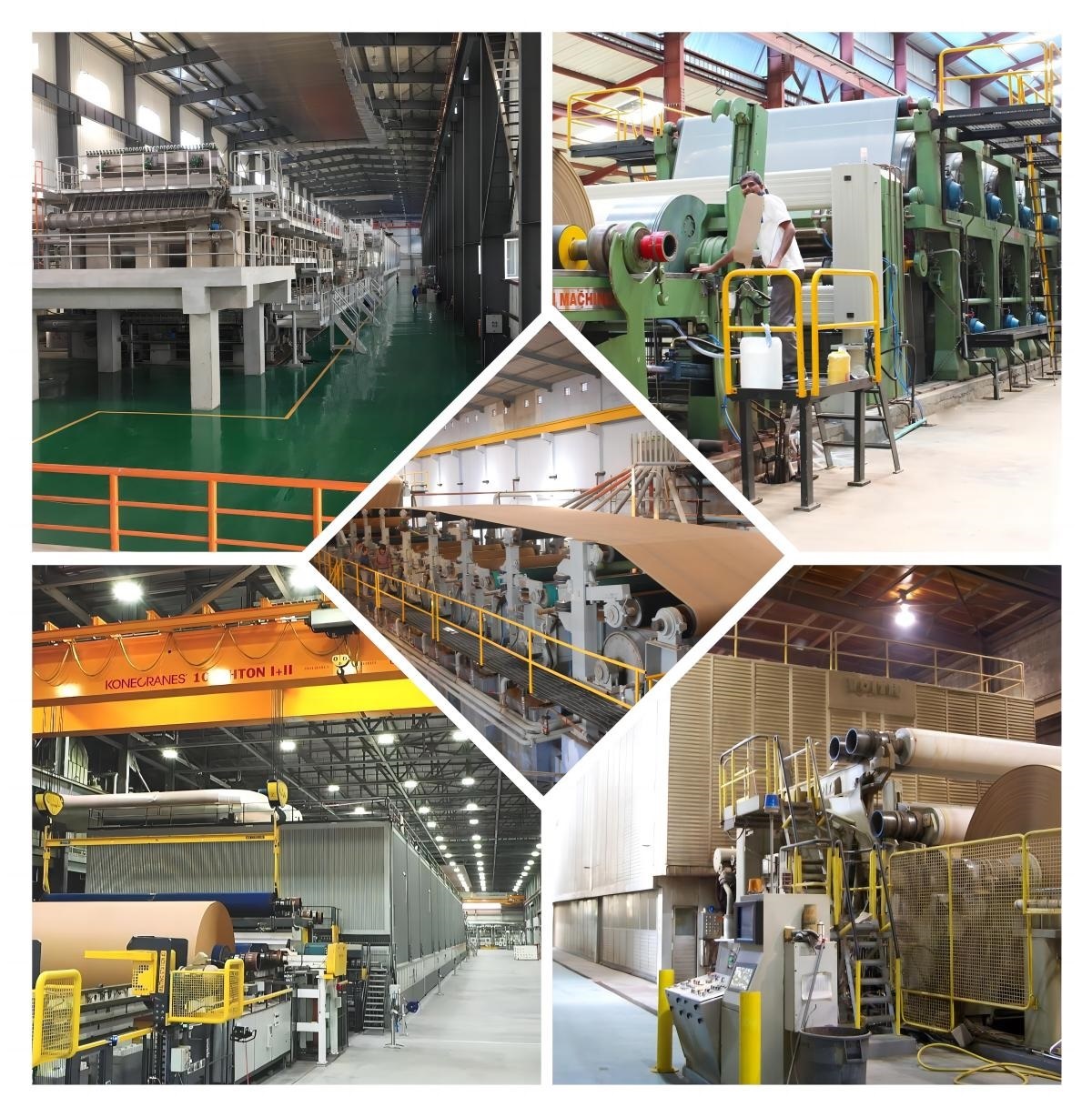

The corrugated cardboard production line is a key production equipment for corrugated cardboard box production enterprises. The corrugated cardboard production line is the most important production line equipment in cardboard box packaging enterprises, including several important components such as wet end equipment, drying section equipment, and production management system.

Main models: 1092, 1575, 1760, 1880, 2100, 2400, 3800, 4000, 4200, 4600, 4800, 5000, 5200, 5600, etc. Single dryer and cylinder mold machine, multi dryer and cylinder mold machine, single/multiple wire machine series

Open‐type head box → double wire section → suction pickup → suction pre‐press → jumbo roll single felt press → 28 sets Φ1800 dryer (grouped as 8+10+sizing+10) → 2‐roll calendar → horizontal pneumatic pope reel → frame type top feeding re-winder

Transverse GSM tolerance of sheet：<±1.0%

Transverse moisture tolerance of sheet：≤0.5%

Web Shrinkage：Max 4%

Dryness of Each Section：

combined dryness：9‐12%

outside wire section：20‐22%

outside press section：≥48%

finished paper：92%

Starching Consistence：

Top pulp：0.25‐0.5%

Bottom pulp：0.30‐0.6%

Nominal Width of Wire：4700mm

Designed and Used Linear Pressure of Press Section：

1st press, designed pressure 100KN/M, used pressure 80KN/M

2nd press, designed pressure 280KN/M, used pressure 240KN/M

3rd press, designed pressure 280KN/M, used pressure 260KN/M
