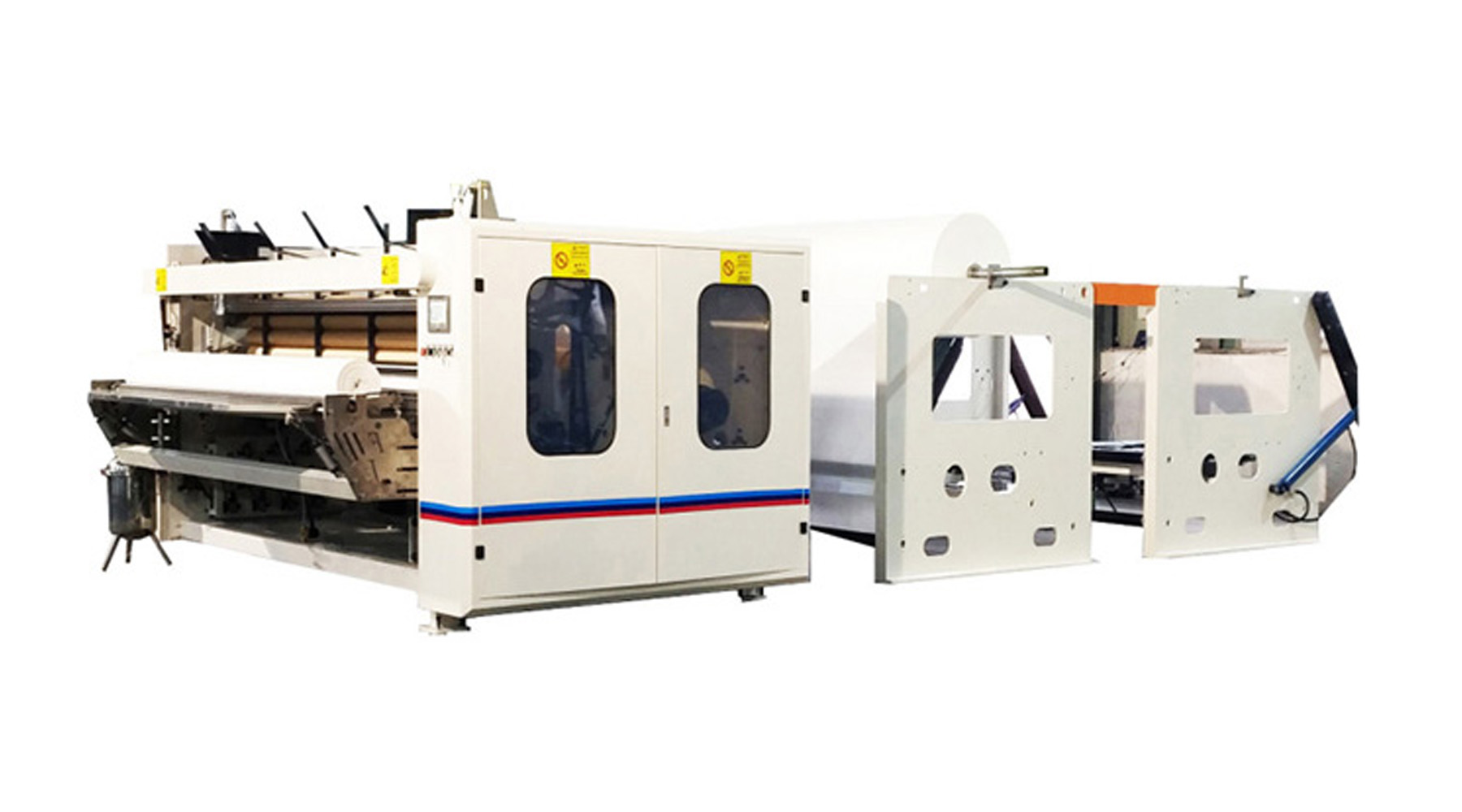

Automatic Kitchen Towels Rewinder adopt newly designed glue applicator unit. It makes the gluing more equality. It has been integrated with the international advanced PLC technology,variable speed adjustment, electronic braking, and touch button more menu type LCD screen operation control panel. And we independently developed long-distance communication service system. It can detect the ma-chine running at any time and improve the production efficiency. It is ideal and important converting machinery for making the kitchen towels..

1.Automatic core loading and positioning.The logs are automatically pushed out after finishing winding, and then start winding again. It can adjust any size of cores within one minute.

2.After finished winding, the roller pushes out automatically. It adopts mechanism arm pusher to push the roller out.The minimum diameter of finished roll is 60mm.

3.Automatic trimming, gluing and sealing : it adopts international popular trimming and sealing system ,which can have 10-18 mm tails to facilitate to start tearing out the paper. At the same time it can cut down the wastage of the paper, thus to cut down the product cost.

4.Advanced programmable control technology. The winding profiles can be tight at the beginning of the winding, and then get loose, to avoid the problems that the cores are loose from the rolls after long time storage.

5.Automatic detection of paper break and paper wrap up, to guarantee the high quality of the finished rolls even in the high speed operation.

6.With high precision screwy perforation knife. With 4 perforation blades to make clear and perforating.

7.Two back-stands,pneumatic jumbo roll feeding, and pneumatically wide belt paper unwinding driving, and individual web tension control unit for each jumbo roll.

8.Gluing applicator: the unit glues the paper an the embossed point to make two layer paper bonds together.

9.The web can be threaded on the machinery by the two jog buttons, making it safer and easier to thread the web.

Machine Model：1880、3150、3650

Raw Material Width：2100、3000、3500

Finished Roll：Φ60-150 mm (Tightness adjustable)

Finished Roll Core：Φ35- 50mm

Raw Material Diameter：Φ1300/1500 mm(Other sizes are available)

Raw Material Core Diameter：3'(76.2 mm)(other sizes are available)

Perforation Pitch：3/4./6 perforating blade 90-160mm:(to be appointed)

Speed：180-200m/min

Program control：Program Controller PLC

Gluing System：Embossing gluing System,driven by servo (to be ordered)

Unwinding Unit：1-3 ply (or specified), 15-30gsm

Pneumatic System：3HP air compressor, Min pressure 5kg/cm'Pa (Provided by client)

Power：Frequency conversion speed regulator, 11-24 kw

Dimension(L*W*H)：8200x3200x2100-8200x4500x2100(mm)

Weight：depend on the size and configure

Optional Equipment

Embossing Unit：Double ply embossing,steel to steel,steel to rubber embossing

Driving system：servo separately driving

Unwinding Unit：motor driving

Printing Unit：1/2color printing

Perforating Unit：Pneumatic control

Remote communication Modem：Option
