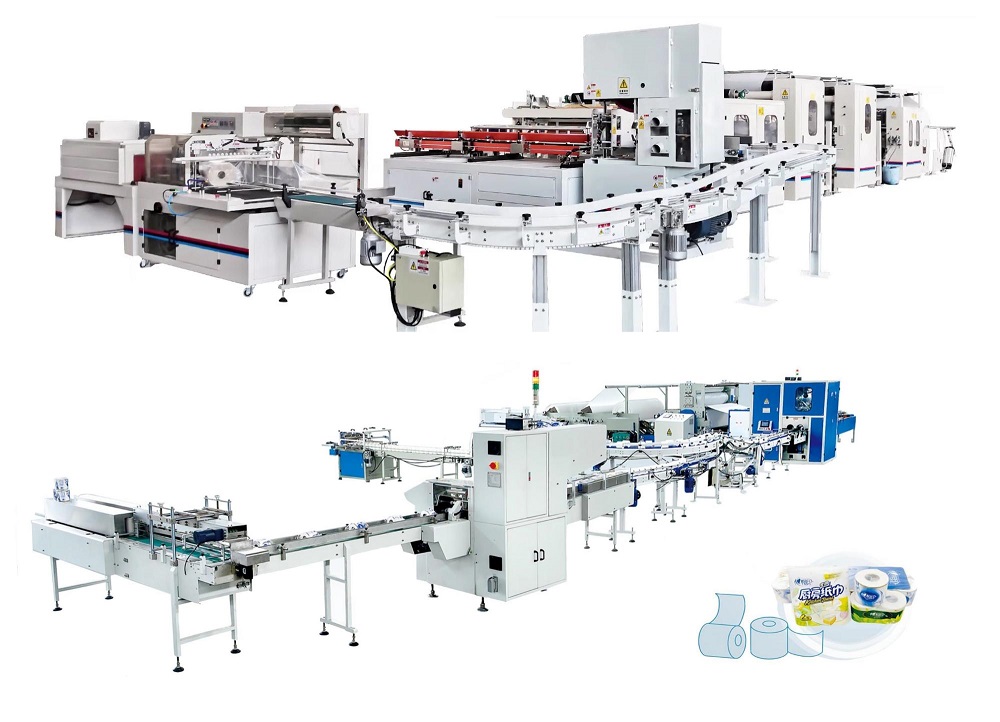

The high speed automatic edge embossing rewinder adopts the advanced technology of PLC computer programming, variable frequency speed regulating, electronic braking,and touch button type LCD screen operation control panel. The machine adopts servo motor control, running speed, low noise, high output. |
1.Automatic core loading and replacing. The logs are automatically pushed out after finishing winding, and then start winding again. The cores can be adjusted to any size of cores within one minute.
2.After finished winding the roller pushed out automatically. It adopts mechanism arm pusher to push the roller out.The minimum diameter of finished roll is 60mm.
3.Automatic trimming, gluing and sealing: it has replaced the traditional sealing of rolls with the international popular trimming and sealing, which can have 10-18mm tails to facilitate to start puling out the paper.At the same time, it can greatly cut down the wastage of the paper, thus to cut down the production cost.
4.Advanced PLC programmable control technology: The winding profiles can be tight at the beginning of winding, and then getting loose, to avoid the problems that the cores are loose from the rolls after long time storage.
5.Automatic detection of paper break and paper wrap up: to guarantee the high quality of the finished rolls even in the high speed operation.
6.Core-less rewinding system has changed the traditional method to take out the core to make high quality solid core-less roller. Reducing the manpower.
7.With high precision screwy perforation knife With 6 perforation blades to make clear perforating. The perforating pitch controlled by gear box.
8.One back-stand, pneumatic jumbo roll feeding, and pneumatically wide belt paper unwinding driving, and individual web tension control unit for each jumbo roll.
9.The web can be threaded on the machine by the two jog buttons, It's more safety and easier to feed the web.
Machine Model:1880、3150、3650
Raw Material Width:2100、3000、3500
Finished Roll:Φ60-130 mm (Tightness adjustable)
Finished Roll Core :Φ35- 50mm
Raw Material Diameter:Φ1300/1500 mm(Other sizes are available)
Raw Material Core Diameter:3'(76.2 mm)(other sizes are available)
Perforation Pitch:3/4./6 perforating blade 90-160mm:(to be appointed)
Speed:180-300m/min
Parameter Setting:LCD Screen operation pane
Program control:Siemens Program Controller PLC
Unwinding Unit:1-3 ply (or specified), 15-30gsm
Pneumatic System:3HP air compressor, Min pressure 5kg/cm'Pa (Provided by client)
Power:Frequency conversion speed regulator, 5.5-15 kw
Dimension(L*W*H):6200X2600x1800-6800X4000x2000(mm)
Weight:3800-9000kg
Optional Equipment:
Embossing Unit:Single ply embossing, double ply embossing, steel to steel embossing
Bottom Embossing Roller:Felt / wool / rubber /steel roller
Unwinding Unit:1-3 ply
Unwinding Unit Driving:Servo motor drive
Edge Embossing Unit:Steel to steel
Perforating Unit:Pneumatically separating
Calendering Unit:Steel to steel, steel to rubber
Remote Control Modem:Option
