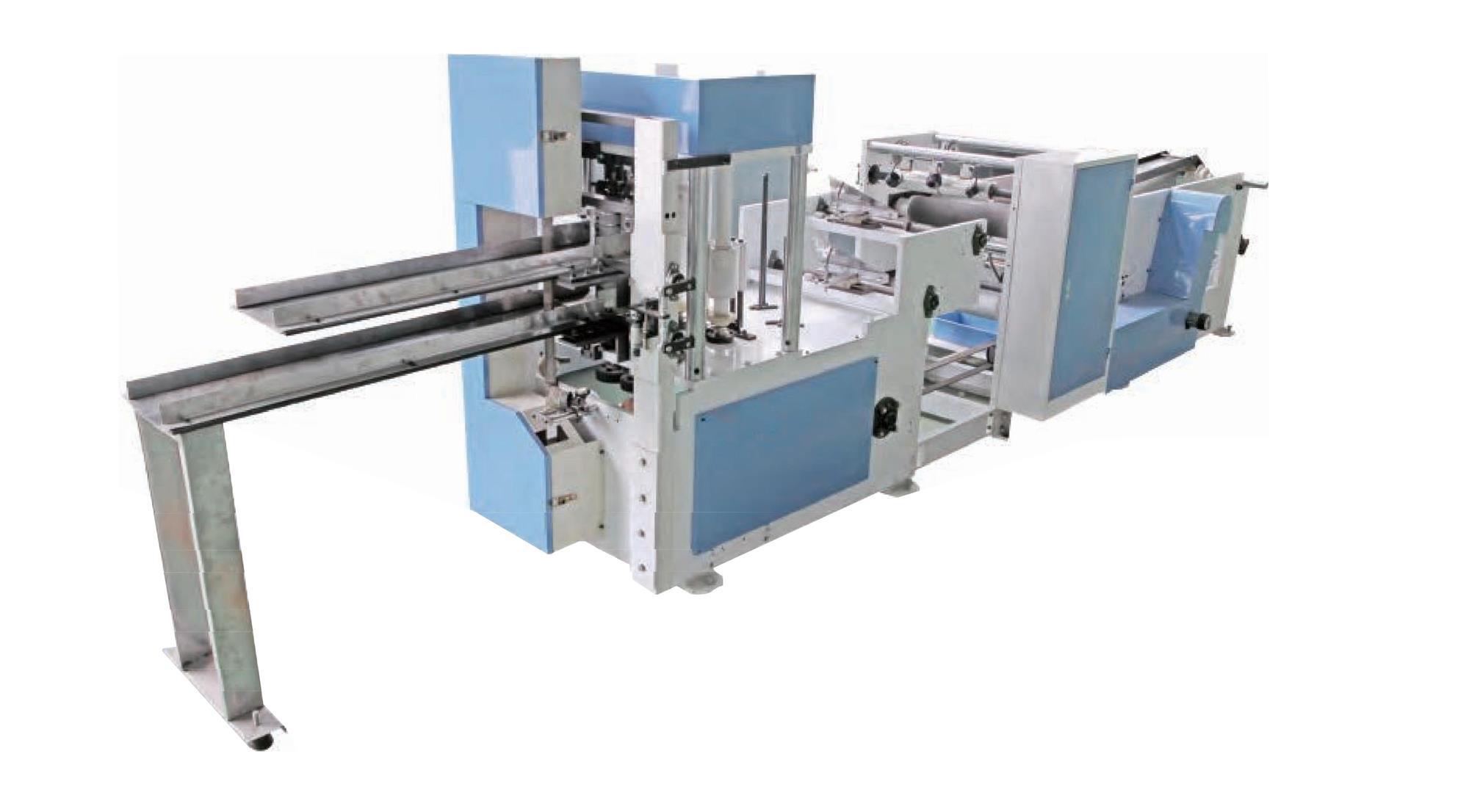

CJ-A Two-Deck Embossing Napkin Folder

z14 - 副本.jpg


Model:CJ-A-2L

Finished Products unfolded size:230x230~460x460(mm)

Folded Size(mm):115x115-230x230±2mm(Width is Adjustable)

Raw Material Diameter:≤Φ1000(mm)

Speed:0-140m/min

Embossing Bottom Roller:Felt / wool / rubber /steel roller

Counting:Electric counting

Power:2.2-4kw

Dimension(LxWxH):5000x1100x1800mm

Weight:1050kg-2500kg

Power:Frequency conversion speed regulator

Transmission System:Timing belt, Gear-box

Calendering:Steel to steel, steel to rubber

Embossing Bottom Roller: Felt / wool / rubber /steel roller

Automatic Jumbo Roll Loading:Option




CJ-A-2L Embossed Napkin Folder is for the production of square or rectangular napkin paper. The parent jumbo rolls which have been slit into the desired width are embossed, automatically folded into finished products of napkins. The machine is equipped with electrical shifting device, which can mark the sheet counts of each bundle required, making it easy for packaging. The embossing rolls can be heated by the heating elements, which can make the embossing patterns clearer and better. Depending on the requirement of customer, the machine can be built to make the 1/4,1/6 and 1/8,etc folding.




z14 - 副本.jpg


Model:CJ-A-2L

Finished Products unfolded size:230x230~460x460(mm)

Folded Size(mm):115x115-230x230±2mm(Width is Adjustable)

Raw Material Diameter:≤Φ1000(mm)

Speed:0-140m/min

Embossing Bottom Roller:Felt / wool / rubber /steel roller

Counting:Electric counting

Power:2.2-4kw

Dimension(LxWxH):5000x1100x1800mm

Weight:1050kg-2500kg

Power:Frequency conversion speed regulator

Transmission System:Timing belt, Gear-box

Calendering:Steel to steel, steel to rubber

Embossing Bottom Roller: Felt / wool / rubber /steel roller

Automatic Jumbo Roll Loading:Option




CJ-A-2L Embossed Napkin Folder is for the production of square or rectangular napkin paper. The parent jumbo rolls which have been slit into the desired width are embossed, automatically folded into finished products of napkins. The machine is equipped with electrical shifting device, which can mark the sheet counts of each bundle required, making it easy for packaging. The embossing rolls can be heated by the heating elements, which can make the embossing patterns clearer and better. Depending on the requirement of customer, the machine can be built to make the 1/4,1/6 and 1/8,etc folding.
