Main Motor Power：5.5kw

Total Power：7.75kw

Web Length：630-1050mm

Web Width：260-500mm

Sheet Weight:45-100g/m²

Max Raw Sheets Thickness:4mm

Max. Sewing Needle Distance:9mm/needle

Machine Weight:6T

Max. Sewing Needle Speed:1800 shot/min

Cross Cut Length Range:100-300mm

Vertical Cut Width Range：125-300mm

Max. Output Speed：30 book/min

Overall Dimensions(LXWXH)：9000×5700×1600mm

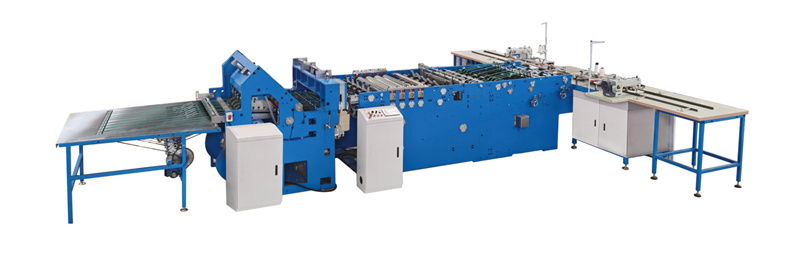

This machine utilizes advanced technologies such as microcomputer controls, photoelectric tracking, gas-liquid interaction, touch screen operation, thread sewing etc. It consists of a pre-prepared raw sheets desk, 2 lines of sewing machines, an auto thread cutting unit, major transport system, a square spine pressing unit, 3-side trimming unit and finished notebook collection. This production line is an ideal choice for the mass production of thread sewn notebooks. The equipment only needs a team of 5 persons, 2 persons for raw material placement, and the other 1 persons for collecting the finished product.
